Dolphin-M2

“Dolphin-M2, Smart Vision for Invisible Pipelines.”

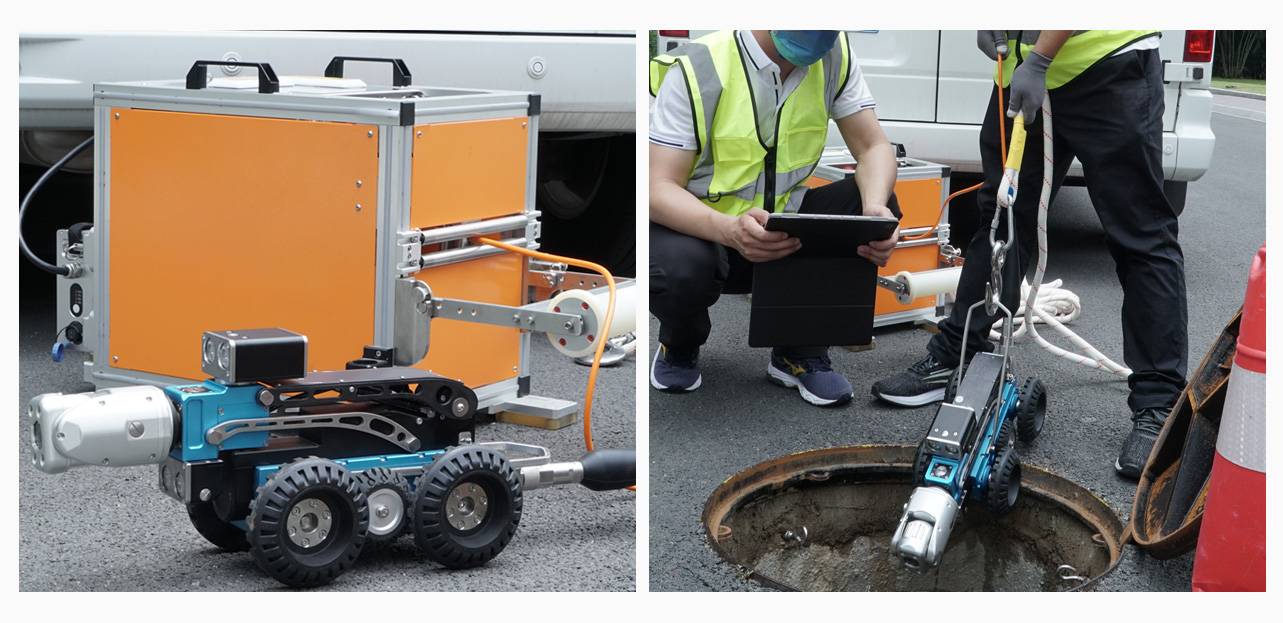

The Dolphin-M2 pipe network inspection robot is designed to replace manual labor in wells and confined drainage environments. It provides high-definition endoscopic imaging to detect internal structural defects such as ruptures, deformations, corrosion, misalignment, and leakage as well as functional defects like sedimentation, scaling, and random pollutant discharge. Its modular architecture allows flexible assembly of the pan/tilt camera, lifting frame, and wheel systems to adapt to diverse pipe diameters ranging from DN150 to 3000 mm. With an IP68 waterproof and dustproof rating, it performs reliably even in submerged or contaminated environments. The enhanced chassis with a climbing angle up to 35° and anti-overturning alarm ensures safe traversal across obstacles. Integrated with intelligent reporting software, the Dolphin-M2 automatically generates detailed inspection reports making it an efficient, adaptable, and precise solution for urban drainage system assessment.

Specs

Pipe Diameter Range: DN150 – 3000 mm
Protection Level: IP68 (waterproof & dustproof)
Camera: 2.1 MP front and rear view, defog function, anti-scratch lens
Modular Design: Quick assembly/disassembly of M3 pan-tilt, lifting frame & wheels
Mobility: Optional enhanced chassis, max climb angle ≤ 35°, anti-overturn alarm
Power & Transmission: Cable-based control with real-time data output
Software: AI-assisted intelligent report generation
Environment: Urban sewer, industrial drainage, stormwater and culvert systems

Discover the product through wonderful videos

Valoraciones

No hay valoraciones aún.

Sé el primero en valorar “Dolphin-M2”

Please Note: Please Note: Lead times for our products may vary based on availability, configuration, and current demand. To ensure accurate delivery timelines and stock status, we encourage all prospective customers to reach out to our team directly. You can request a quote through our website or email us at sales@robostore.com, and we’ll provide you with the most up-to-date information tailored to your order.

Discover real use cases of this product

Infrastructure Assessment & Renovation

Before pipe relining or replacement, engineers deploy the Dolphin-M2 to obtain precise footage and measurements. Its modular lifting frame adjusts to different pipe diameters, while the anti-overturn system guarantees stability on uneven terrain. The data collected helps determine exact defect positions and severity, allowing targeted repairs. This approach saves time, reduces excavation, and optimizes rehabilitation costs.

Industrial Drainage Monitoring

In manufacturing or chemical processing facilities, the Dolphin-M2 identifies corrosion, chemical residue, and structural decay caused by industrial effluent. Its IP68 protection ensures operation even in corrosive liquids. Equipped with a defogging camera and adjustable lighting, it provides crystal-clear imagery under challenging conditions. Inspection data integrates seamlessly with plant management systems, empowering preventive maintenance and reducing unplanned downtime.

Urban Sewer Inspection

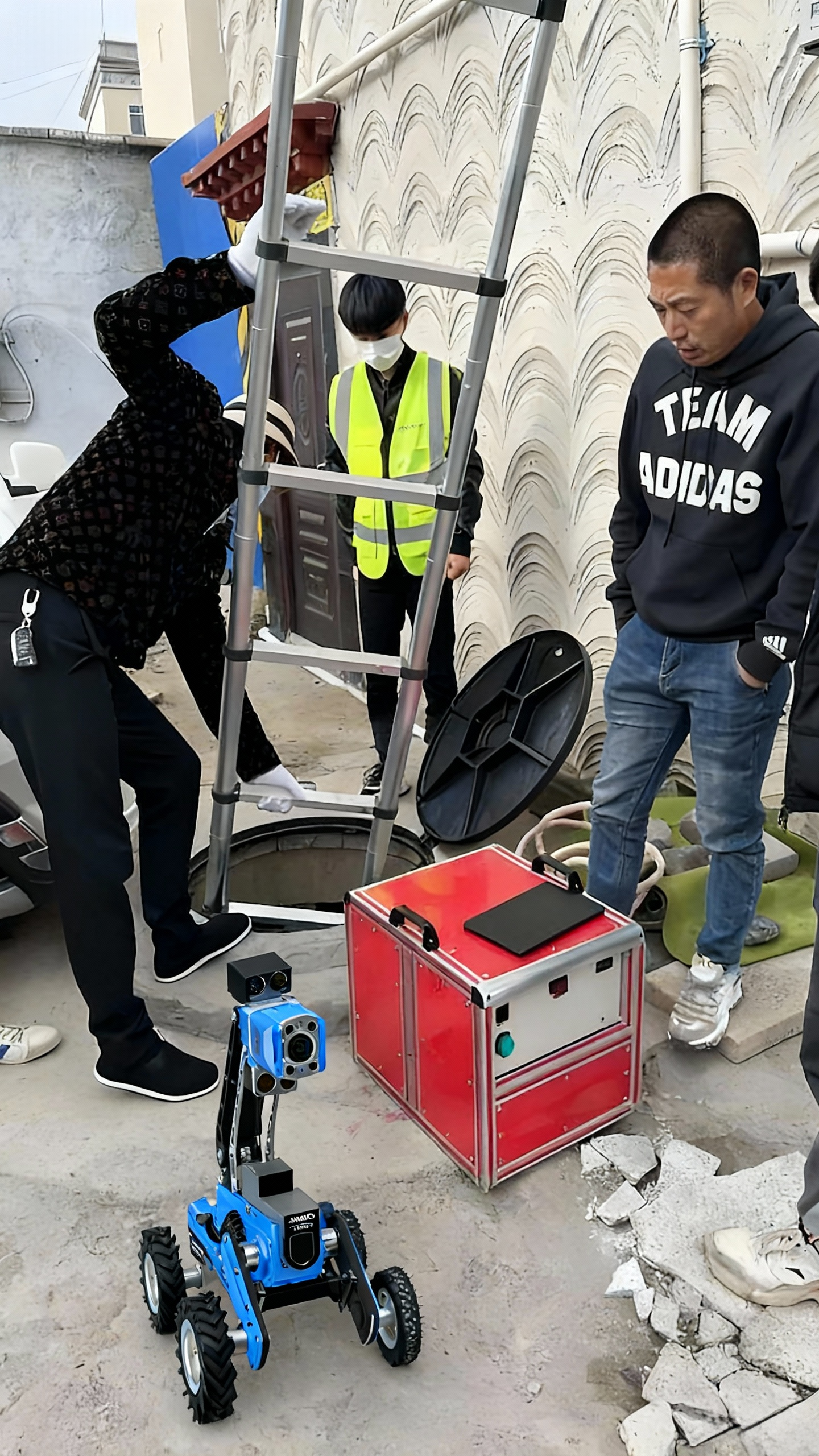

The Dolphin-M2 allows precise visual diagnostics of complex sewer systems where manual access is unsafe or impractical. Operators receive HD video of cracks, root intrusion, and pipe dislocation. The modular design supports quick adaptation to various diameters, ensuring coverage of diverse pipelines in one session. Automatic report generation further enhances workflow, allowing municipalities to optimize maintenance schedules and ensure environmental compliance.

Industrial Drainage Monitoring

Check the common questions of our clients

What is the main purpose of the Dolphin-M2?

It replaces manual inspection in confined drainage systems, capturing HD visuals of internal defects to ensure safety, efficiency, and regulatory compliance for municipalities and industrial operators.

What pipe sizes can the Dolphin-M2 inspect?

It supports inspections across DN150 to DN3000 mm pipes, accommodating small urban drains, large culverts, and stormwater tunnels with modular frame adjustment.

How is data captured and reported?

Video and sensor data are collected in real time and processed through intelligent reporting software to generate automated inspection reports with annotated images and defect maps.

Can the robot operate underwater?

Yes, its IP68 rating ensures full functionality in submerged conditions up to 10 meters deep, maintaining camera clarity and mobility through water-filled pipes.

Is the robot easy to assemble?

The modular design allows quick assembly and disassembly of camera modules, lifting frames, and wheel sets to suit different pipe sizes and terrain conditions.

How does the anti-overturn system work?

It monitors inclination in real time and triggers an alarm if the tilt angle approaches its limit, preventing rollovers and ensuring operator safety.

What maintenance does it require?

Routine cleaning of the camera lens and chassis, battery checks, and software updates keep the system in optimal condition. No complex mechanical servicing is needed.

Can the system be integrated with third-party software?

Yes, the Dolphin-M2 supports data export to standard GIS and infrastructure management platforms for extended analysis and record-keeping.
